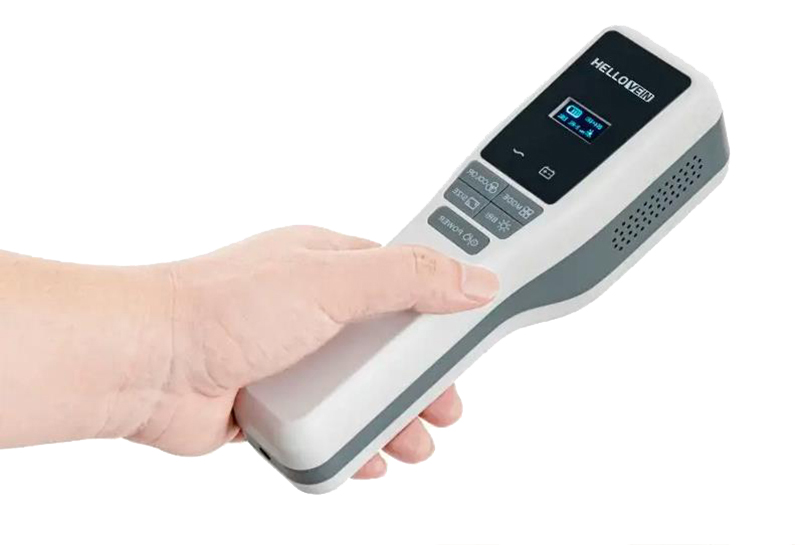

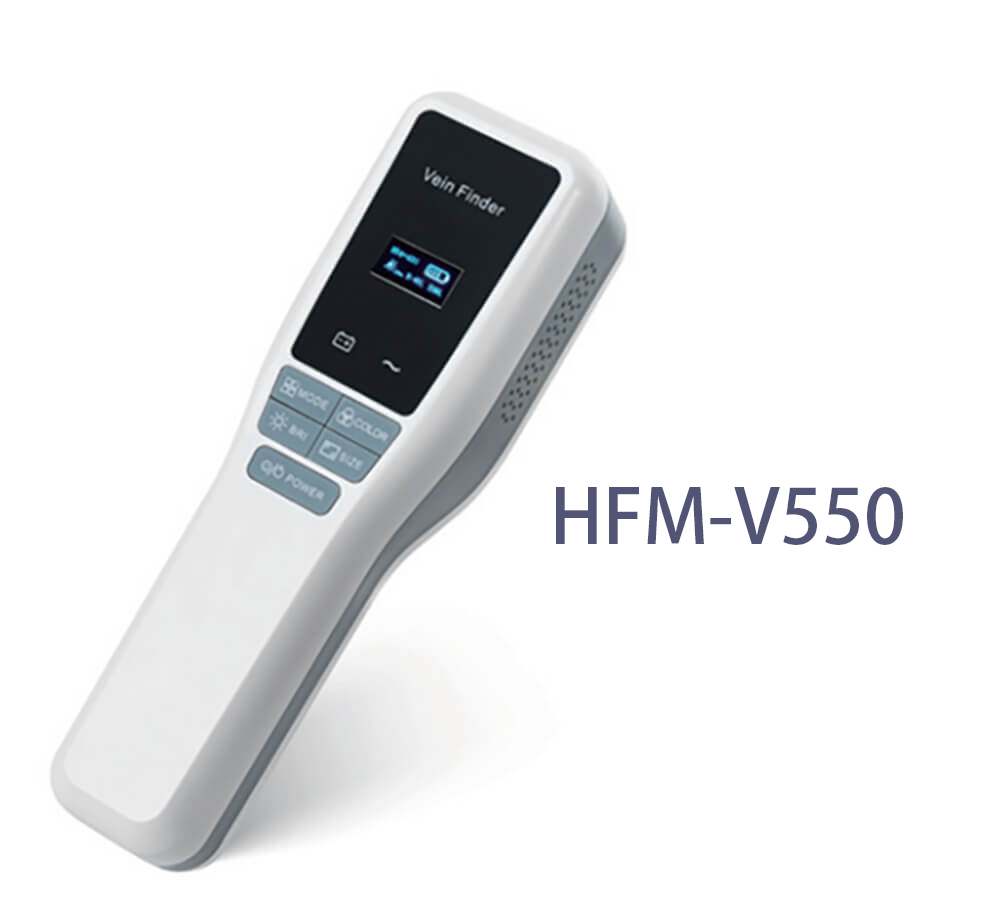

vein finder device is a medical equipment used to assist medical staff in locating and visualizing the position of veins in the body during clinical operations. Usually near-infrared light technology is used. The human blood absorbs near-infrared light, while other tissues such as skin and muscles are relatively transparent. When near-infrared light is irradiated onto the skin, hemoglobin in the blood vessels absorbs this light, and the device detects the difference in reflected or transmitted light intensity through high-sensitivity sensors, which are processed to form a blood vessel image. Widely used in hospitals, clinics, and other medical institutions, especially in emergency departments, operating rooms, pediatrics, geriatrics, oncology, and other fields.
High Resolution image
High-precision cameras and high-precision projectors with advanced vascular algorithms to ensure high resolution qualified images.
Multiple Sizes and Brightness Display
Large, medium, small, and very small images optional and four level brightness optional.

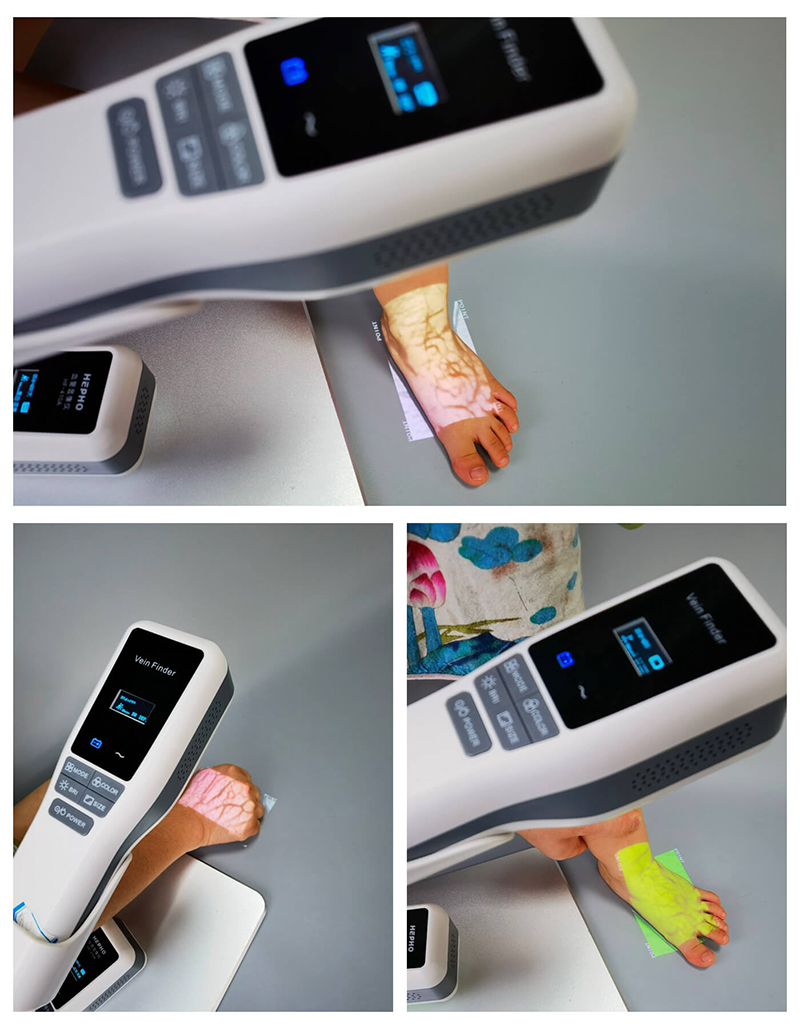

Three Modes Display
Normal, enhanced and deep mode with three puncture position prompts: deep, medium, and shallow.
Multiple Colors Display
Black white, green, green background, red, purple, purple background, optional for different skin.
ltem | Specification |
Light Source | Near Infrared |
Projector Resolution(pixel) | 854*480 |
Projection Size | Large, Medium, Small, Very Smal! |
Projection Color | Black white, green, green background, red, purple, purple background |
Projection Brightness | 4 levels adjustable |
Projection Mode | Normal, enhanced, depth |
Depth Prompts | Deep, medium, shallow |
Resolution Speed | 60frames/s |
Resolution Deviation | <0.10mm |
Best Projection Distance | 200士20mm |
Minimum ldentified Blood Vessel Diameter | >0.4mm |
Wave Length | 750-950nm |
Maximum Detection Depth | <8mm |
Sleeping Function | 30 minutes no operation goes into sleeping function |
Display | 0.96inch OLED display module, displayingpixels, battery, brightness, color, mode, sleepcountdown etc. |
Main Unit Consumption | 50VA |
Power | 100~240V,50/60HZ,Adapter:12V,2.5A |
Battery | Internal 7.2V 2200mAhworking time >2.5h |

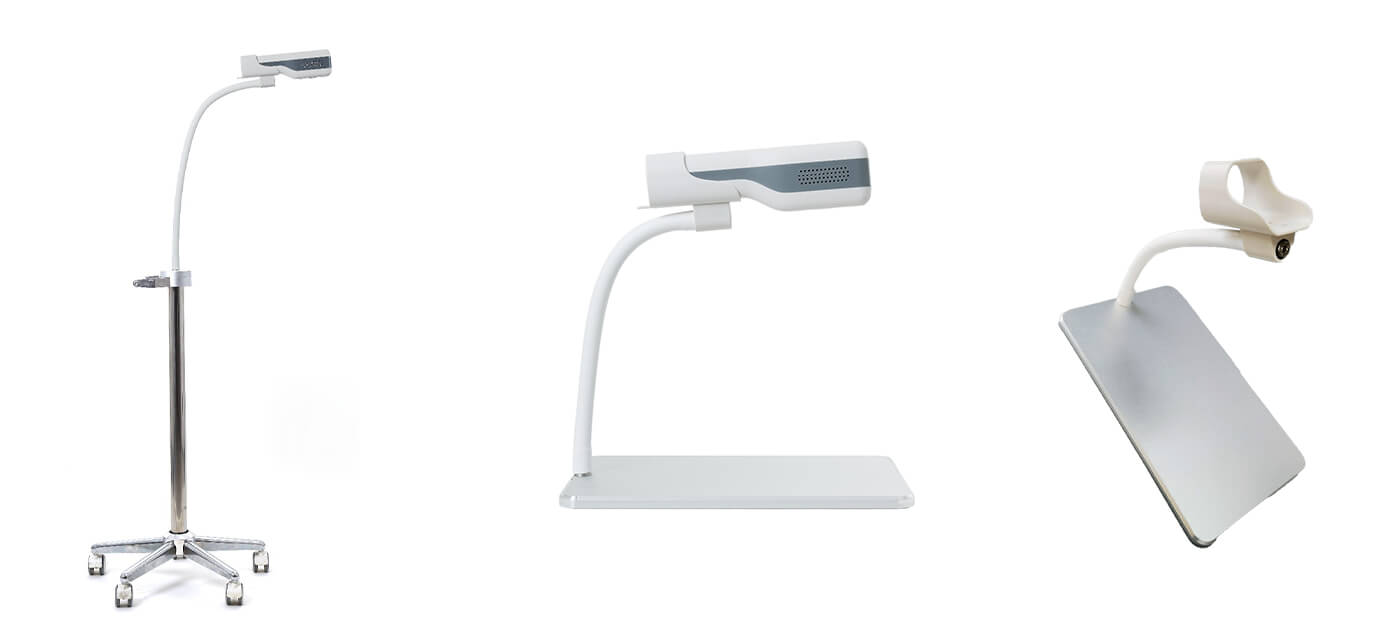

Fixed Option | Mobile stand, benchtop, handheld |
Weight | 480g |
Dimension | 220mm*65mm*65mm |
we will ship the goods in 5-7 working days after we receive the payment
