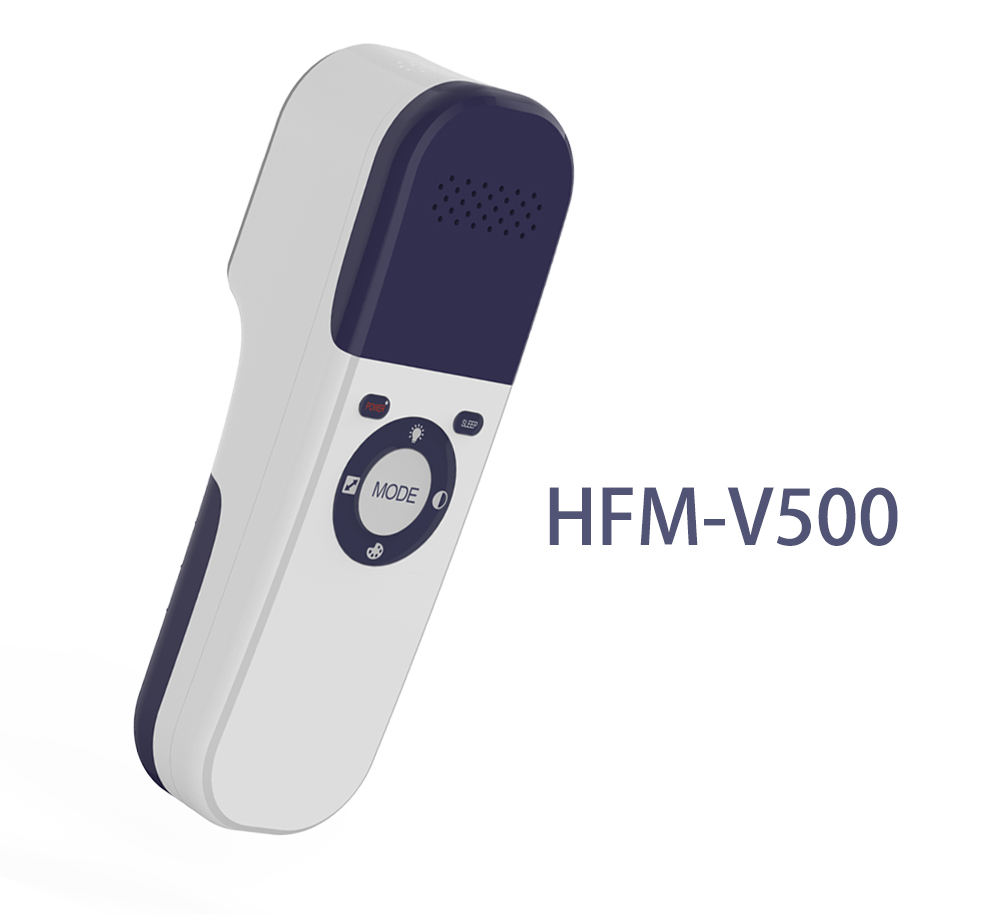

Vein finder HFM-V500

Vein finder HFM-V500

Why Choose Vein finder HFM-V500 ?

IKNETE Medical is a high-tech medical device company with R&D, production and sales.

100% Safe & Trused

Support OEM/ODM

24/7 Online support

Medicine service

Leave a message +86 15221780619

pay

Product Introduction

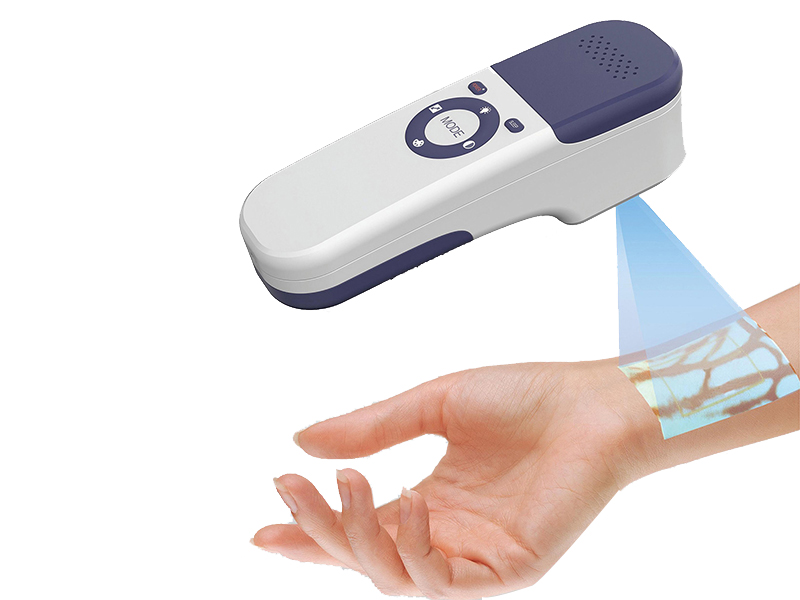

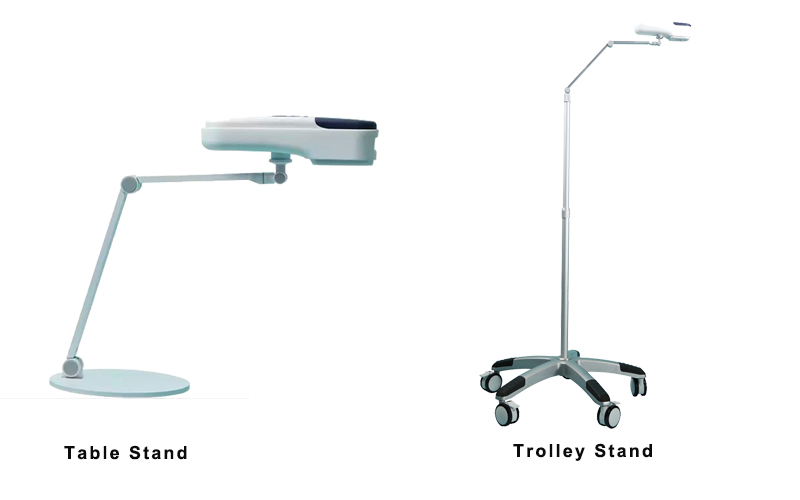

HFM-V500 is a portable vein finding device. lt can project the blood vessels image on skin surface accurately and timely. The ergonomic design makes it very comfortable to hold. And the optional desktop stand and mobile trolley are available for multiple


vein finder light

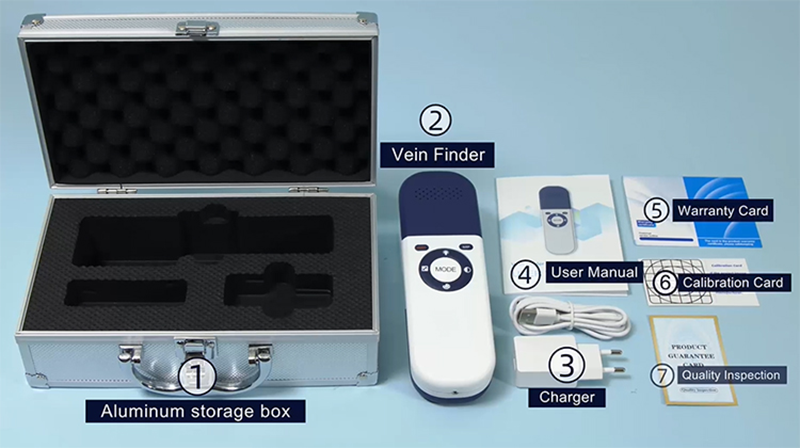

Vein Finder HFM-V500 Complete Set


vein finder set




vein finder table

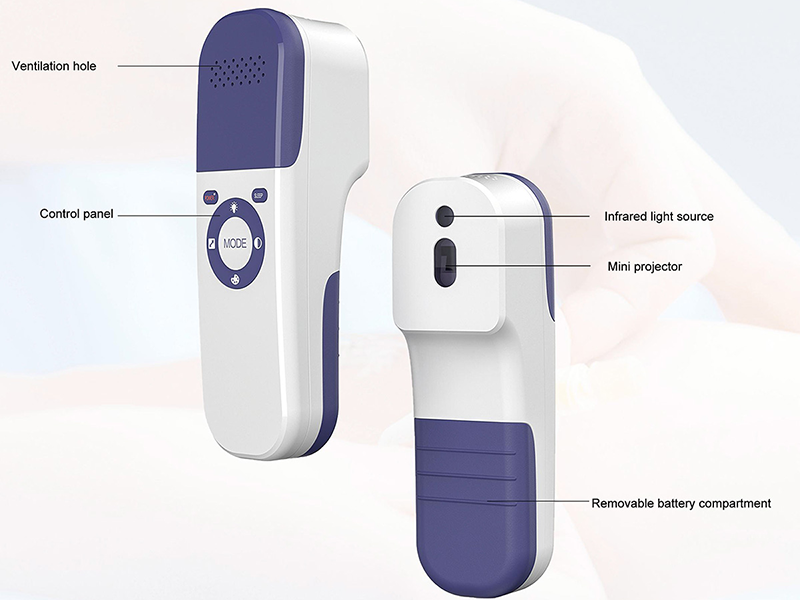

Vein finder function




Application Scenario

Assist medical staff to observe the vascular thickness, length, curve and branch information to determine the best puncture location. lt highly increase the success rate of puncture thus reduce the cost and pain.

In fat / Plastic Surgery / Varicose Veins / Fine Blood Vessels / Chemotherapy Patients / Vascular Obstruction


vein finder application

Function

This machine has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights and various operating environments.

Ø 7 Colors Available: Suitable for different skin colors or environments.

Ø 3 Sizes Available: Suitable for adults, children and newborns.

Ø 5 Levels of Brightness: Adjust the projection image to the most comfortable brightness.

Ø Inversion: Reduce arm hair interference and make blood vessels clearer

Ø Enhancement Mode: Enhance the clarity of blood vessel detection.

Ø Sleep Mode: enter into ow power mode when the user needs short intervals and can be waked up quickly

Ø Power monitoring: Real-time monitoring of battery power and projection of remaining power, alert the user when the battery is low


7 Colors Available


500 vein finder optional color

Technical Parameter

Light:

The human body's harmless infrared light

Distance:

15-25cm

Accuracy

±0.3mm

Noise:

≤20dB

Weight:

280g

Product size:

20cm (L)*6.2cm(W)*5.5cm(H)

batteries:

Panasonic 3400mAh lithium battery

Power
DC 5V 2A

The adapter

100V-240V,AC 50Hz-60Hz; 5V 2A

American TI projection technology


vein finder certification
