Percutaneous nephroscope training simulator HFM-8708

Percutaneous nephroscope training simulator HFM-8708

Why Choose Percutaneous nephroscope training simulator HFM-8708 ?

IKNETE Medical is a high-tech medical device company with R&D, production and sales.

100% Safe & Trused

Support OEM/ODM

24/7 Online support

Medicine service

Leave a message +86 15221780619

pay

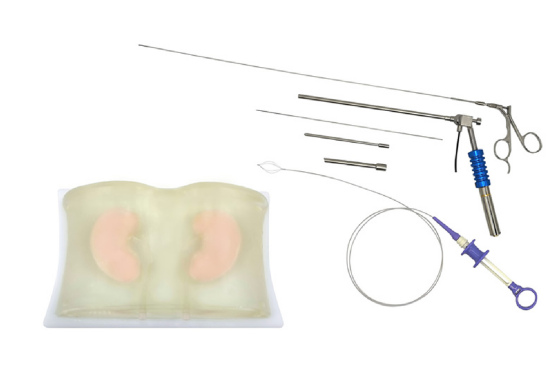

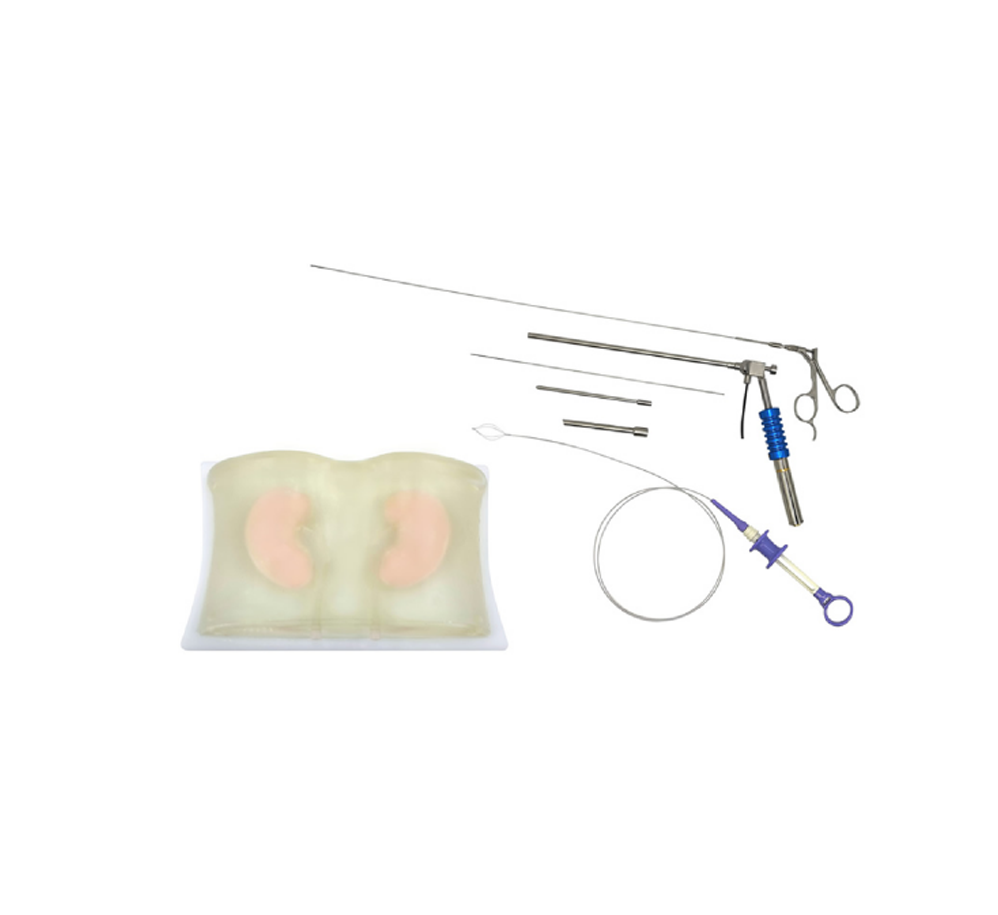

Configuration list

1.Renal puncture modelTransparent back, bilateral kidney ureter, base and circulation pumps

2.Percutaneous nephroscope 1280*720 resolution working length 200mm

3.Dilatation tube  4mm, 6.5mm each 1pc

4.Biopsy forceps  Working length 560mm

5.Stone extraction mesh basketΦ1.6*1000mm, 4 silk spindle head

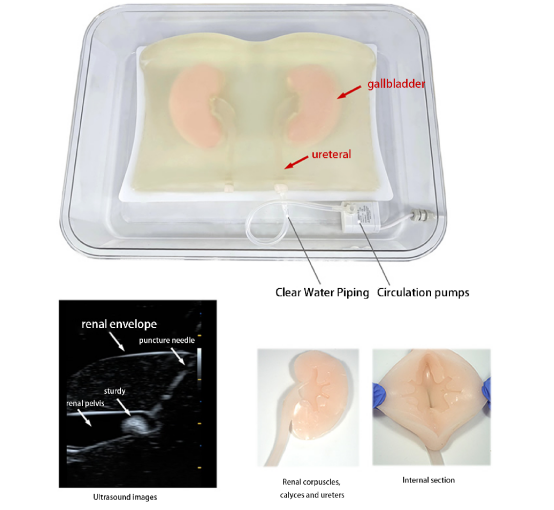

BOX



The waist and kidney models are made of soft leather-like material;

Adult male 1:1 scale;

One kidney on the left and one on the right, the kidney consists of renal parenchyma, renal mons and ureter;

Size:400*300*80mm.

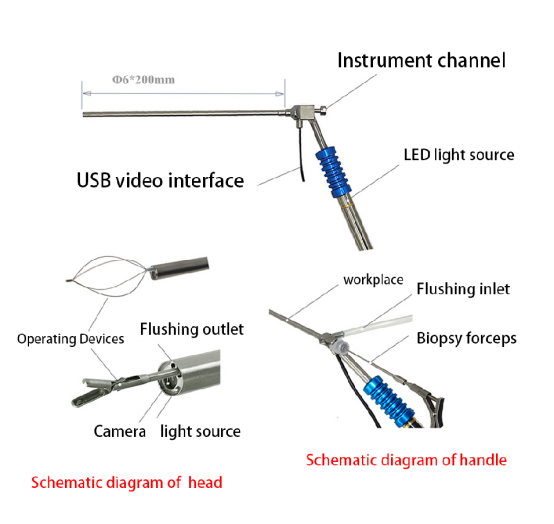

Percutaneous nephroscopy


1. Endoscope size: working part 6*200mm

2.Camera resolution: 1280*720, 25 frames per second

3. Channel diameter : 6Fr

4. Light source type: LED light source, optical fibre independent channel conduction

5. Waterproof degree: working part IPX7

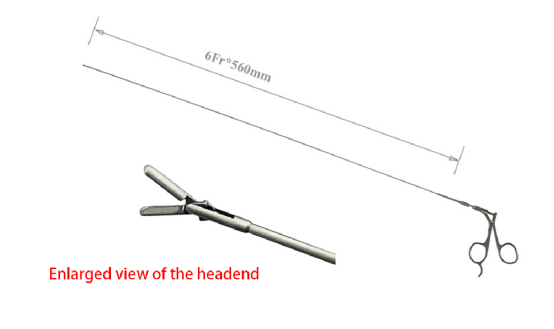

Ureteroscopic biopsy forceps

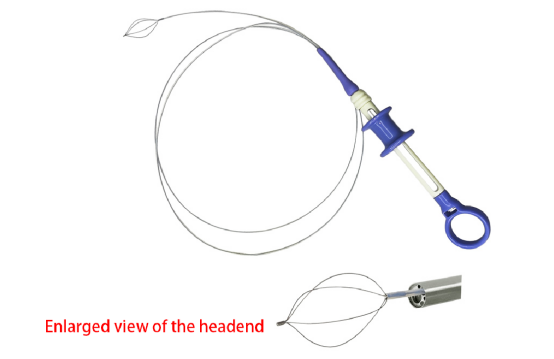

Stone Extraction Basket


Parameters of mesh basket for stone extraction

1Mesh basket size:Φ1.6*1200mm

2head specification: 4 silk spindle shape

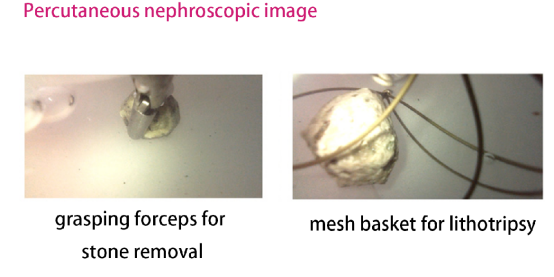

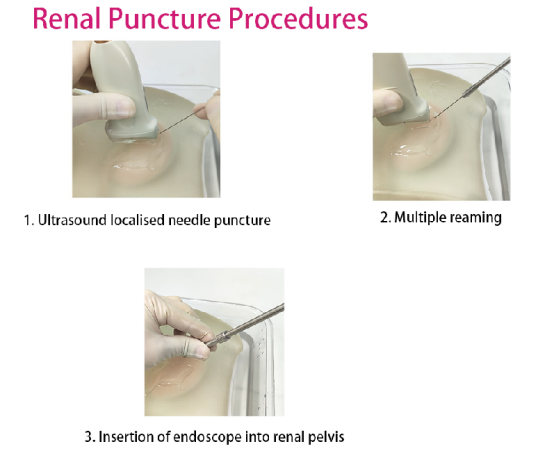

Status of use
