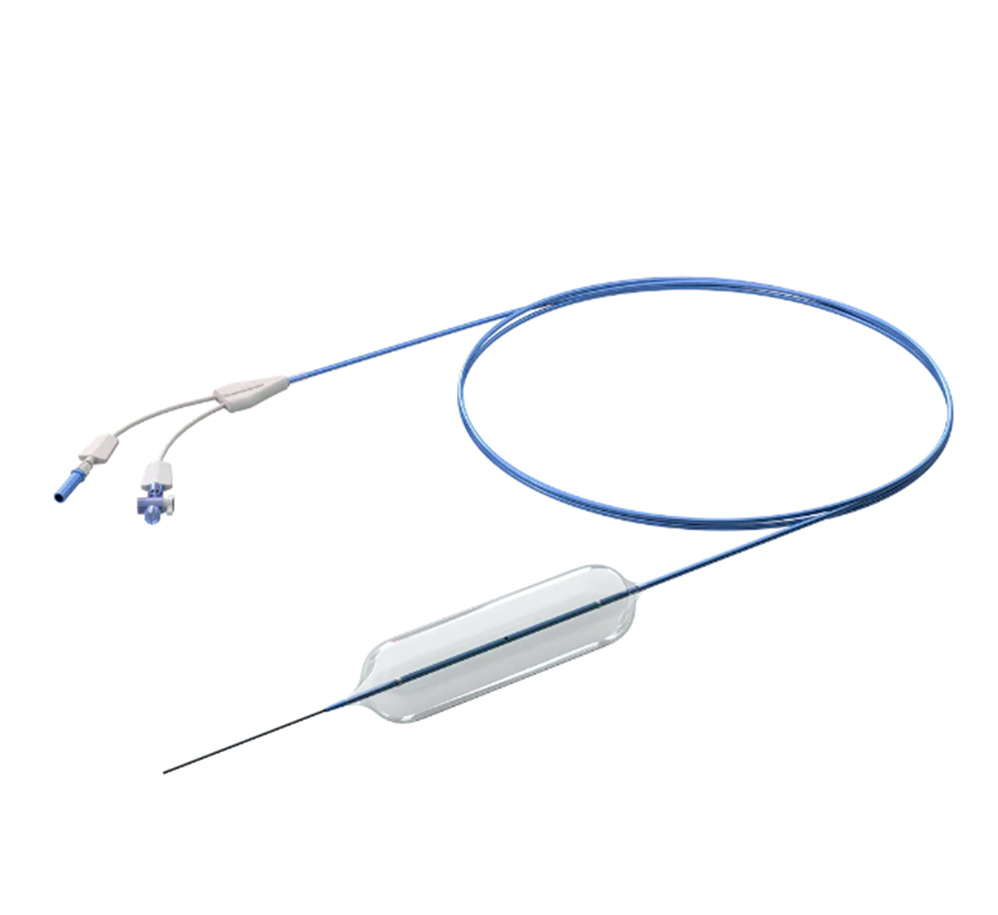

Dilation Balloon Catheter is an interventional medical device that is disposable and usually consists of an expansion tube, a balloon, and a catheter seat. Implanting an expansion catheter into a blood vessel can serve as a therapeutic conductor, which is then used to clear the vessel through the catheter
USAGE：Used for dilation treatment or auxiliary dilation treatment of digestive tract.
FEATURES：
High pressure-resistant materials ensure safe dilation.
The sylindrical balloon is not easy to deform, and afterdilation, it is convenient to observe.
Various balloon size for choice meets diffrent clinicaldemand.
Dilation balloon for ERCP
Model | Balloon O.D(mm) | Balloon Length(mm) | Catheter Length(mm) | Working Pressure(atm) | Remark |
HFM-BD-60-40-200 | 6 | 40 | 2000 | 5 | Suitable for ≥ 2.8mm biopsy hole, passing 0.035 guide wire |
HFM-BD-80-40-200 | 8 | 40 | 2000 | 5 | |
HFM-BD-100-40-200 | 10 | 40 | 2000 | 5 | |
HFM-BD-120-40-200 | 12 | 40 | 2000 | 5 | |
HFM-BD-140-40-200 | 14 | 40 | 2000 | 5 | |
HFM-BD-160-40-200 | 16 | 40 | 2000 | 5 |
Dilation balloon for PTCS (percutaneous transhepatic choledo chofibroscopy)
Model | Balloon O.D(mm) | Balloon Length(mm) | Catheter Length(mm) | Working Pressure | Remark |
HFM-BD-60-40-90 | 6 | 40 | 900 | 5 | Suitable for Endoscopic channel ≥ 2 8mm . Gude wre D.0.035 |
HFM-BD-80-40-90 | 8 | 40 | 900 | 5 | |
HFM-BD-100-40-90 | 10 | 40 | 900 | 5 | Endoscopic channel ≥2.8mm |
Dilation balloon for Cardia
Model | Balloon O.D (mm) | Balloon Length | Catheter Length(mm) | Working Pressure | Remark |
HFM-BD-250-80-90 | 25 | 80 | 900 | 2 | Not suitable for Endoscope use Guide wire D.. 0.035" |
HFM-BD-300-80-90 | 30 | 80 | 900 | 2 | |
HFM-BD-350-80-90 | 35 | 80 | 900 | 2 |
Dilation balloon for Esophagus,Pylorus and lntestinal tract
Model | Balloon O.D(mm) | Balloon Length(mm) | Catheter Length(mm) | Working Pressure(atm) | Remark |
HFM-BD-100-40-180 | 10 | 40 | 1800 | 5 | Suitable for Endoscopic channelz2.8mm. Guide wire D.:0.035" |
HFM-BD-120-60-180 | 12 | 60 | 1800 | 5 | |
HFM-BD-140-60-180 | 14 | 60 | 1800 | 5 | |
HFM-BD-160-80-180 | 16 | 80 | 1800 | 5 | |
HFM-BD-180-60-180 | 18 | 60 | 1800 | 4 | |
HFM-BD-180-80-180 | 18 | 80 | 1800 | 4 | |
HFM-BD-200-60-180 | 20 | 60 | 1800 | 4 | Suitable for Endoscopic channei 2 3 2mm , not su able for gu de wire |
Dilation balloon for Organsm, Bronchi, Respiratory tract
Model | Balloon O.D(mm) | Balloon Length(mm) | Catheter Length(mm) | Working Pressure(atm) | Remark |
HFM-BD-60-30-110 | 6 | 30 | 1100 | 5 | Suitable for Endoscopic channelz2.0mm. Guide wire D.:0.032" |
HFM-BD-60-40-110 | 6 | 40 | 1100 | 5 | |
HFM-BD-80-30-110 | 8 | 30 | 1100 | 5 | |
HFM-BD-80-40-110 | 8 | 40 | 1100 | 5 | |
HFM-BD-100-40-110 | 10 | 40 | 1100 | 5 | Suitable for Endoscopic channelz 2.8mm. Guide wire D.:0.032" |
HFM-BD-120-40-110 | 12 | 40 | 1100 | 5 | |
HFM-BD-140-40-110 | 14 | 40 | 1100 | 5 | |
HFM-BD-140-60-110 | 14 | 60 | 1100 | 5 | |
HFM-BD-160-60-110 | 16 | 60 | 1100 | 5 | |
HFM-BD-180-60-110 | 18 | 60 | 1100 | 4 |
